Overview
Carriage Position System: 180DPI Grating Positioning System
Carraige Lifting System: Manual Screw Type Carraige Lifting System
Printhead Protection System: Carriage Anti Collision System

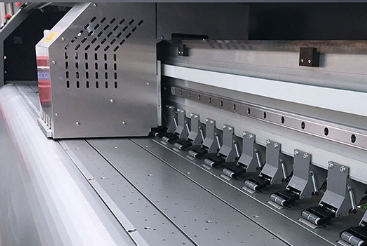

Main Girder Structure: Square Pipe Welds
Carriage Beam: 4200mm Thickened Aluminum Beam

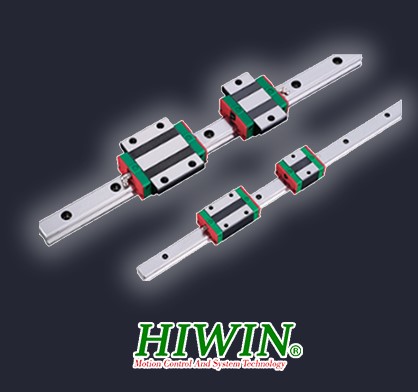

Linear Guide Way: Taiwan Hiwin linear guide with two pcs mute sliders
Pinch Roller: 24PCS High Precision Aluminum Made Pinch Roller

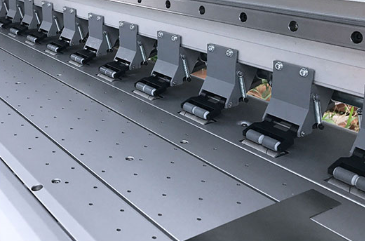

Printing Bed: 171mm Wide Printing Bed Material Suction System: Adjustable Vacuum Suction Systemm
LED Lighting System: Printing Bed Lighting System
Heating System: Rear Cover-Printing Bed-Front Cover
X Driving Mode : Belt&Pulley
Y Driving Mode: 20mm Diameter Steel Axis
XY Motor Bracket: Aluminum Machined Brackets

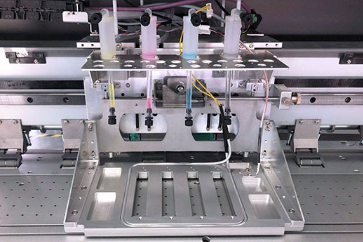

Printhead Cleaning System : Individual Ink Purging System
Subtank Heater: Subtank Heater

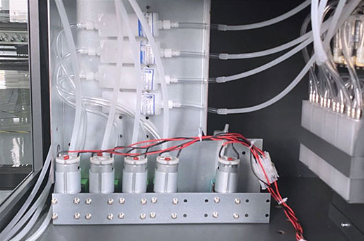

Ink Supply System: Positive pressure ink supply system
Mains Input System: Independent System Power Input And Heating Power Input
Image Drying System : Two rows of big fans /p>
Carriage Capping System : Protect wet ink light
Roll Material Feeding System: Step-Free Feeding System Big
Roll Material Holding System(Optional) : Big Roll Material Holding System
Right Side
4 inl Heating Control System: Unified Operation, Fast And Effective
Ink Supply Alarm Lamp: Flash And Buzz When Ink Supply Is Abnormal,Avoid The Problems
Start/ stop: One Click Start/Stop To Prevent Misoperation.
Home Sensor: Metal Induction, Long Life Purging Button: KCMY, Purging Seperately.
Specification
|
Brand
|
Gethray
|
|
Printer Model
|
GT-EP2101
|
|
Printhead
|
Epson i3200
|
|
Printhead Quantity
|
2
|
|
Maximum Print Width
|
2133mm
|
|
Ink & Color
|
Eco-Solvent Ink
, 4 colors (C, M, Y, K)
|
|
Printing Speed
|
3 pass(360*1800): 264ft2/hr
4 pass(720*1200): 194ft2/hr 6 pass(720*1800): 135ft2/hr |
|
Print
|
Ink Type: i-Eco
Ink Capacity: 1L Bluk System |
|
RIP Software
|
Maintop
|
|
Drying
|
Fans + &
IR Heater
|
|
Machine Size(L*W*H)
|
2.585m * 0.67m * 1.3m
|
|
Packing Size(L*W*H)
|
2.7m * 0.57m * 0.65m
|
|
N.W. / G.W.
|
177Kg / 240Kg
|
