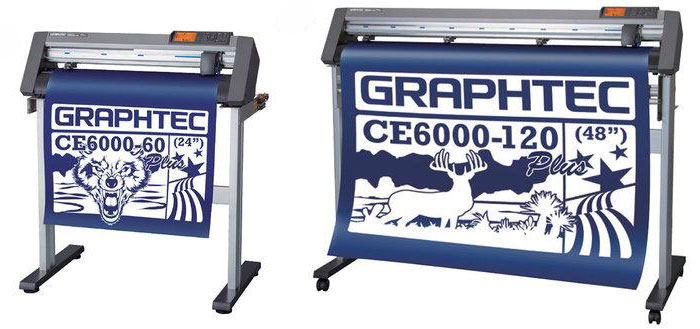

Graphtec CE-6000-120 Plus



Graphtec's new CE6000-120 PLUS series of cutting machines are finally here! These machines feature faster cut time, precision cutting and a fast and accurate digital servo motor. Graphtec is known for quality and long-lasting machines and their new CE6000 cutters don't disappoint! These cutters also come equipped with the new Graphtec Studio Software, which makes designing and cutting an easy task. Also, these cutters feature a plug-in for Adobe Illustrator and CorelDraw.

Features:
  • Includes Graphtec ARMS 5.0 (Automatic Registration Mark Sensor)
  • Fast and accurate digital servo motor
  • 4 point, dual-axis skew correction
  • Tangential control enhanced precision
  • Graphtec Studio Software
  • Plug-ins available for Adobe Illustrator and CorelDraw
  • Compatible with Windows & macOS
  • Software can drive multiple cutters simultaneously
  • Software automatically auto-detects any cutter once plugged into USB port

Includes:

  • CE6000 Cutter
  • CE6000 Stand
  • Graphtec Software (macOS)
  • Power cord
  • Cutting blade set
  • Safe media cutter
  • Roll holder
  • USB cable
  • Setup manual
  • Safety manual

Specifications:


Configuration Grit roller with digital servo drive system

Maximum cutting area (W x L) 47.75 in x 164 ft 0.5 in / (1213 mm × 50 m) (*1)

Cutting area of guaranteed accuracy(W x L)
(when using the basket)

3 ft 11 in x 16 ft 4.85 in

(1194 mm × 5 m) (*1)

Mountable media width Min. 4.7 in to Max. 53 in (Min. 120 mm to Max. 1346 mm)

Number of push rollers 3 rollers

Maximum cutting speed 1000 mm/s, at 45º angle

Maximum acceleration 45.60 ft (13.9 m/s2), at 45º direction

Maximum cutting force 4.41 N (450 gf) in 38 steps

Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and type of media)

Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Repeat-ability Max. 0.1 mm in plot up to 2 m (*1)

Mountable number of tools 1 tool

Blade type Supersteel

Pen type Oil-based ballpoint, Water-based fiber-tip pen

Media type
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness Polyester film, up to 0.25mm thickness (unguaranteed accuracy)

Interface RS-232C, USB2.0

Buffer memory 2 MB

Command sets GP-GL / HP-GL™ emulation (Set by command or auto-detect)

Display Graphic type LCD with backlight (240dots x 128dots), supports 10 languages

Registration mark sensing system Marks are scanned by an optical sensor (ARMS5.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detect

Alignment accuracy Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)

Power source 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz

Power consumption 120 VA

Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)

Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)

External dimensions (W x D x H)

Approx. 60.67 x 28.97 x 49.21 in

(1541 × 736 × 1250 mm)

Weight Approx. 89.28 lb (40.5 kg) (including stand 36.15lb, 16.4 kg)

Compatible OS (*2) Windows 10 / 8.1 / 8 / 7
macOS 10.6 - 10.14

Included software Cutting Master 4, Graphtec Pro Studio (for Windows), Graphtec Studio (for Mac), Windows driver, Cutting Plotter Controller

Compatibility Standards

Safety - UL / cUL, CE mark, RoHS Directive

EMC - VCCI Class A, FCC Class A, EN55022 Class A
