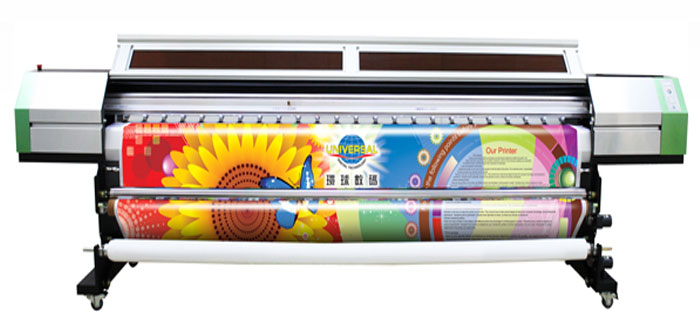

Spark Vision Ltd.



Printhead	Epson DX5

Number of printhead	2 Heads

Maximum Print Width	3,200mm

Maximum Media Width	3,300mm

Print Speed (m2/h)	Print mode	Standard output(m2/h)
	D	3 PASS 22
	S	4 PASS 16
	Q	6 PASS 11
	HQ	8 PASS 8
	BL	12 PASS 11

Ink	Type:	UV Ink
	Color :	4 Color (C,M,Y,K)
	Capacity:	1L per Main Tank of Each Color
	Ink Supply System	Auto Ink Supply System

Media Type	Ceilling film, Vinyl, PS Board, KT Board, PVC Foam Board, Window Flim, Polyester, Flex, Back-lit Film, etc.

Auto Media Feeding System	Equipped (Max. Media Weight 40kg)

Auto Cleaning System	Anti-clogged Flash Function & Capping System

Pre-heating & Drying System	Equipped

Clamp	Equipped

Print Interface	USB 2.0

Printhead Height	2 to 10 mm from Media

RIP Software	Ultraprint, Maintop, Photoprint, Wasatch, Onyx

Input Power	AC 220V, 50Hz/60Hz

Operating Environment	Humidity: 20-80% (Recommend 40-60%)
	Temperature: 15-35°C (Recommend 20-32)

Machine Dimension / N.W	L4,700 x W905 x H1,260mm / 304KG

Package Dimension / G.W	L4,790 x W1,100 x H940mm / 547KG
